Cooling capacity: from 11 to 494 kW

VHH is available as:

  • Chiller
  • Chiller reversible to heat pump
  • Multiporpose unit for 4 pipes system for simultaneous and independent production of cold and hot water
  • Multiporpose unit for 2 pipes system to seasonal switching (summer/winter), with simultaneous and independent production of domestic hot water

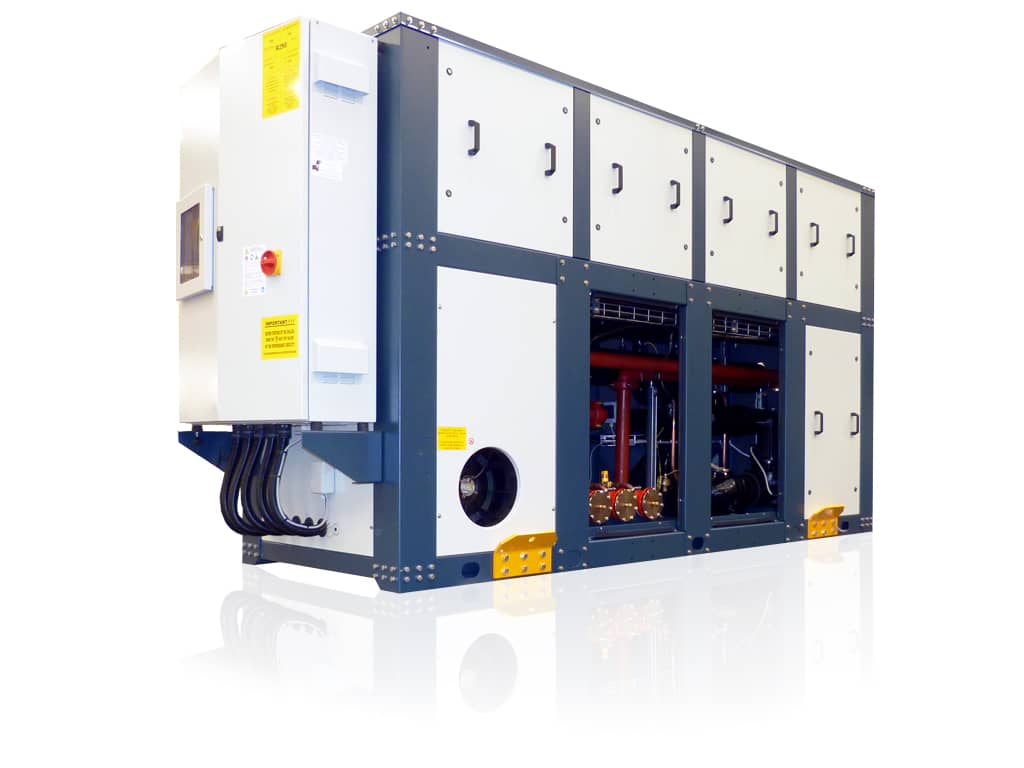

Water cooled chiller with scroll or reciprocating compressors for indoor installation

Available on several models equipped with one or more scroll or reciprocating compressors, dimensioned to be used with refrigerant type R410A or with the new low GWP HFO-1234ze or with R290.

These water cooled chillers are assembled on a strong self-supporting metal screwed and welded structure, painted with epoxy powder with anti-rust coating for outdoor installation.

All units are supplied completely wired and ready to be connected to the user’s plant. Prior to delivery every machine is submitted to a performance test, with intervention tests of all the safety systems and components installed.

Each unit is available with compressors sound insulation kit for the LN (compressors housing) and XLN (compressors housing insulation) versions, for installation in areas where noise emission must be kept to a minimum.
